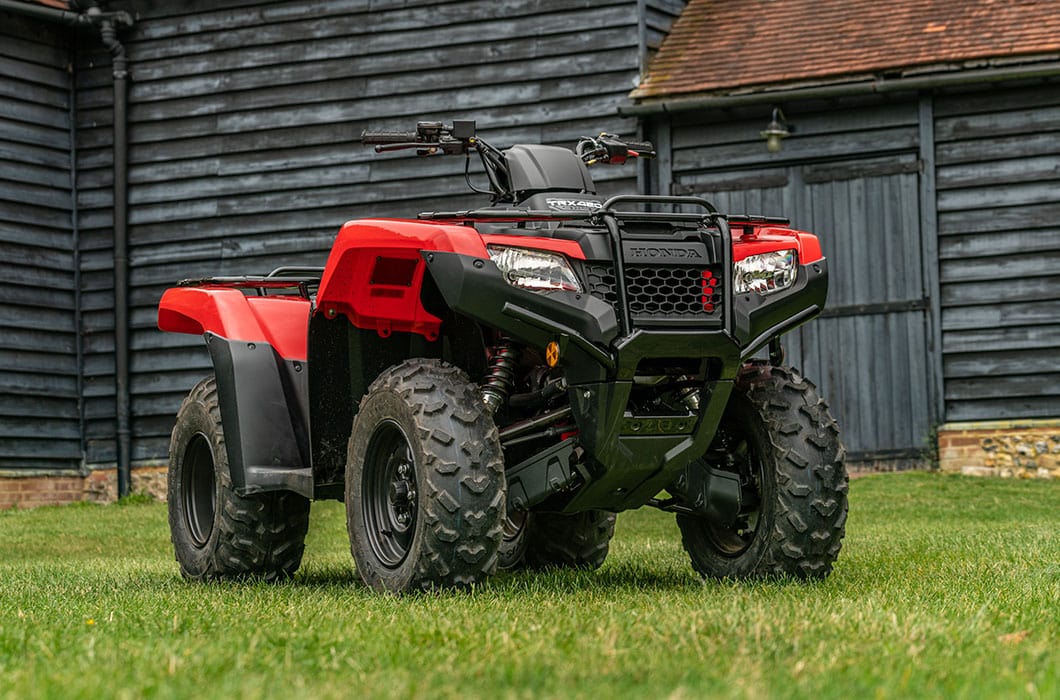

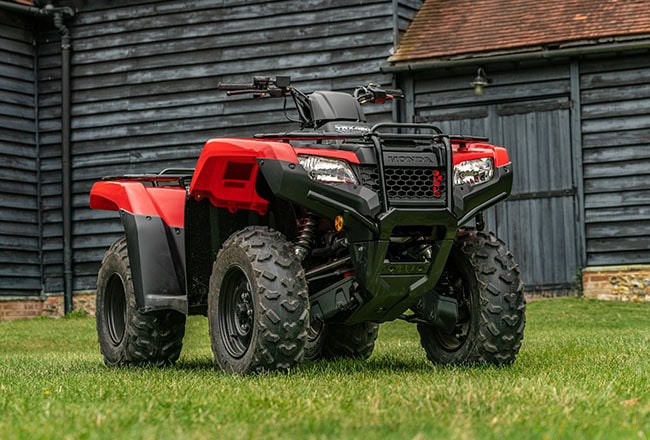

Honda TRX420 Fourtrax
Built for quality, reliability and with a host of advanced features, it's no wonder the Honda TRX 420 Fourtrax is trusted the world over.
Just as you would expect from a Honda ATV, the Honda Fourtrax 420 delivers everything you need to meet the working day’s challenges. Forever reliable out in the field, it offers outstanding performance in the harshest of weather conditions.
A powerful 5-speed gearbox and fuel-injected, liquid-cooled 420cc engine give superb pulling power, easy all-weather starts and quick acceleration. Dual front hydraulic disc brakes with disc covers feature clever built-in scrapers to remove mud and snow from inside the front wheel, boosting handling and stopping power. The Fourtrax 420 is not only easy to handle and maintain – it’s also great fun to ride.
Exceptional Stability, Handling & Balance
- Longitudinally-mounted engine.
- With the crankshaft in line with the frame you get direct driveshaft alignment to the wheels, improved drivetrain efficiency and a low centre of gravity.
- Independent double-wishbone front suspension with 185mm travel soaks up anything in the way – aiding rider comfort and all the while keeping steering precise.
- Rugged frame and suspension provide up to 233mm of ground clearance. An Axle-mounted heavy-duty trailer hitch with 385kg towing capacity is installed as standard equipment, providing complete versatility.
Trouble-Free Performance
- A Keihin fuel-injection system provides crisp performance and ensures trouble-free operation in cold conditions and changing altitudes. The large radiator and fan ensure optimal engine cooling under tough operating conditions.
- An automatic clutch with a low engagement point gives fast, easy shifts and excellent towing ability; true engine braking also helps maintain control.
- An easy-to-use parking brake locks the Fourtrax 420 in position. The Fourtrax 420 also comes with independent rear suspension in some model versions.
Specifications
| Model | MODEL NUMBER | ENGINE(CC) | TRANSMISION(STROKES/MIN) | POWER STEERING | INDEPENDENT REARSUSPENSION | Product Brochure |
|---|---|---|---|---|---|---|
| Fourtrax 2/4WD | TRX420FM1 | 420 | Manual 2/4WD | No | No | Download |
| Fourtrax PS 2/4WD | TRX420FM2 | 420 | Manual 2/4WD | Yes | No | Download |
| Fourtrax ES 2/4WD | TRX420FE1 | 420 | Electric shift (ESP) 2/4WD | No | No | Download |
| Fourtrax DCT PS 2/4WD | TRX420FA2 | 420 | Automatic Dual clutch transmission | Yes | No | Download |
| Fourtrax DCT IRS PS 2/4WD | TRX420FA6 | 420 | Automatic Dual clutch transmission | Yes | Yes | Download |
