JCB JCB 18Z Canopy Plus

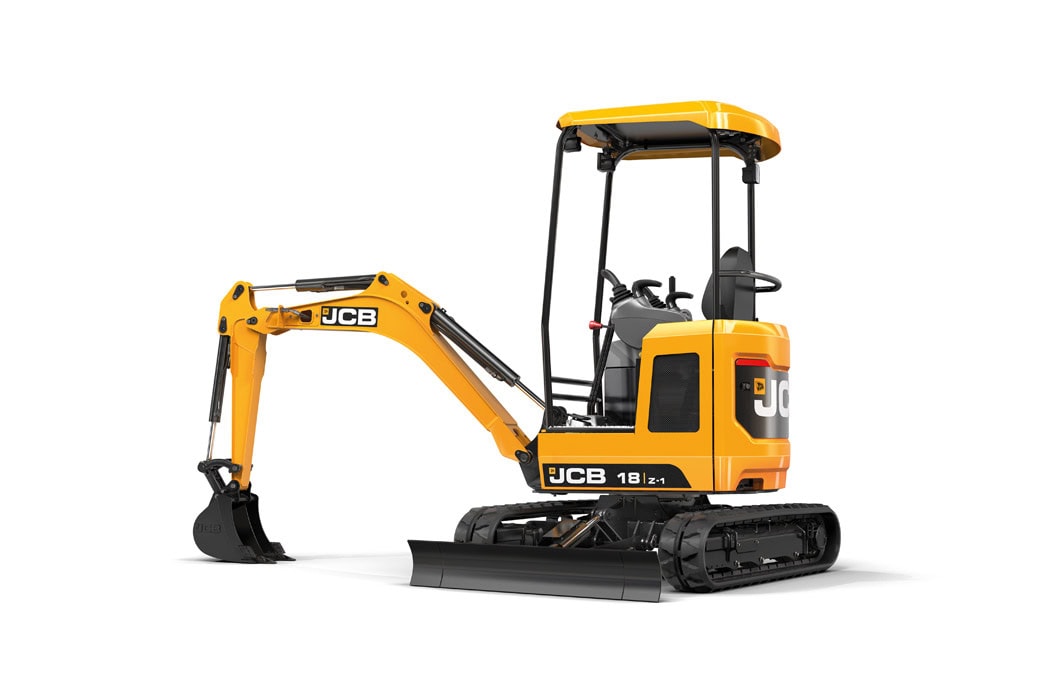

The JCB 18Z Canopy Plus is a nifty, nimble machine.
The JCB 18Z Canopy Plus facilitates work in tight spaces and small environments including footways, narrow aisles, or between buildings.
Tough as old boots
- The JCB 18Z Canopy Plus undergoes state-of-the-art manufacturing processes and unique, innovative build techniques which results in a strong, durable build quality. The bodywork is 100% steel which is cost effective to repair if required, however it is very resistant to knocks. The bushed dig end has hoses routed through the dipper and boom for extra durability.
- The JCB 18Z Canopy Plus is the first zero tailswing model that protects the machine and surrounding environment from accidental damage.
Safe, secure, and comfortable
- The JCB 18Z Canopy Plus has a 180° opening service door, simplifying the cleaning and maintenance processes. A sloping undercarriage also means the level of soil retention is minimal, enabling fast cleaning. The external fuel tank is lockable for extra security.
- Electro proportional control enables precision when controlling attachments, while a right hand panel features simple button functions and easy to read warnings and indicators. The machine can be transported quickly and easily thanks to 10 tie down and 4 lifting points. Industry standard bucket centres and pin sizes are used, providing greater versatility attachment.
Specifications
| Model | OPERATING WEIGHT*(KG) | MAX. DUMP HEIGHT(MM) | BUCKET TEAROUT(kN) | DIPPER TEAROUT(kN) | GROSS ENGINE POWER(KW) | Product Brochure |
|---|---|---|---|---|---|---|
| 18Z Canopy Plus (950mm Dipper) | 1749 | 2598 | 18 | 10.1 | 11.7 | Download |
| 18Z Canopy Plus (1100mm Dipper) | 1749 | 2637 | 18 | 9.1 | 11.7 | Download |
*Operator weight to ISO 6016 including cab/canopy, rubber tracks, 950 dipper, 300mm bucket, full tanks and a 75kg operator
