Stewart Trailers GX

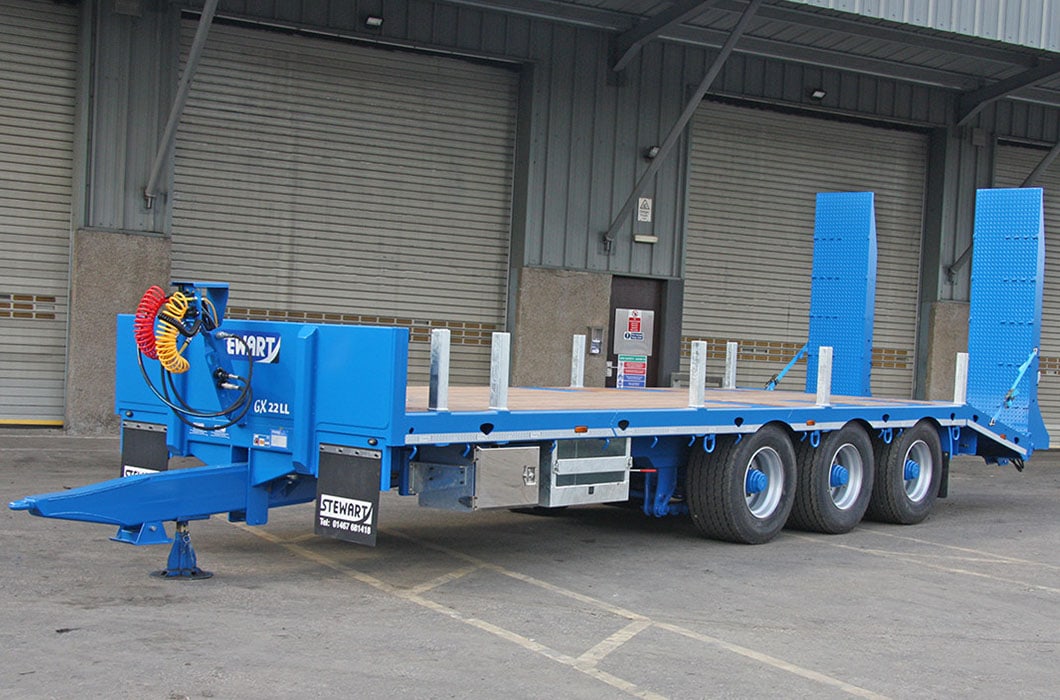

Shifting large, bulky equipment is simple with Stewart's Low Loader trailer range; each one perfectly custom built.

When you need to haul heavy equipment, Stewart’s Low Loader Trailers get the job done safely and efficiently. Each and every trailer is built to exact customer requirements, so whether you prefer an open tread, timber or steel ramp, Stewart has you covered.

The 15 tonne and 22 tonne models are fitted with a hydraulic ramp as standard, and all models in the range have a strong, hard-wearing 45mm Keruing timber floor.

You also have the option to select a variety of extras, alongside the standard range of premium design features each Stewart Low Loader comes with.

Complete Kit-Out

  • Removable electric coil
  • Stalk to keep hoses and cables tidy
  • Fixed headboard
  • Hardwood floor
  • Chain securing rings in floor
  • Hydraulic rear ramps
  • LED road lighting system
  • Steel ramps can be galvanised or paint finished

Superb Attention to Detail

  • Spray flaps
  • Sprung suspension
  • Multi stroke parking brake
  • 8mm side rave with keyhole cut outs
  • Conspicuity tape
  • Sprung drawbar
  • Colour coded hydraulic hose grips
  • Two pack flexi paint



Specifications

ModelCARRYING CAPACITY(KG)LENGTH(M)FLOOR HEIGHT(M)Product Brochure
GX 22 LL 22,000 Up to 10.00 1.01 Download
GX 15 LL 15,000 Up to 10.00 1.01 Download
GX 10 LL 10,000 6.10 1.04 Download

Enquire Now

Contact our Sales Support Hub or fill in the form below

T 01995 640 302 - OPTION 3 E
